1. What is Brazed PCBN Inserts ?
Brazed PCBN Inserts are a type of cutting tool used in machining operations that require high precision and durability. PCBN stands for polycrystalline cubic boron nitride, which is a superhard material that is second only to diamond in terms of its cutting ability. Brazing is a process of joining two materials together using a filler material that melts and flows into the joint under high heat. In the case of Brazed PCBN Inserts, the PCBN cutting edge is brazed onto a tungsten carbide substrate, which provides structural support.
2. The Application Details about Brazed PCBN Inserts
Brazed PCBN Inserts are highly effective for machining hardened steels and other hard materials, due to the exceptional hardness and wear resistance of the PCBN cutting edge. When properly designed and manufactured, Brazed PCBN Inserts can provide high cutting speeds, long tool life, and precise results. They are commonly used in industries such as automotive, aerospace, and tool and die making.
3. The Brazed PCBN tool grades we can offer
![SCBN Tools-Welded PCBN Inserts.jpg SCBN Tools-Welded PCBN Inserts.jpg](/uploads/allimg/20230601/1-23060111051WB.jpg)
4. What we can offer with Brazed PCBN Inserts?

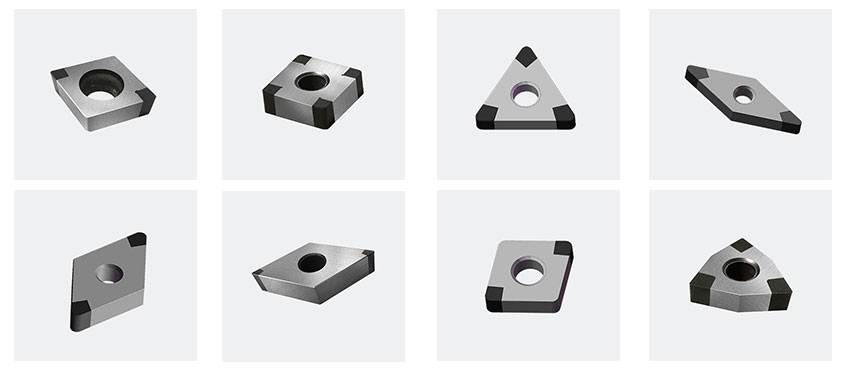

All ISO Models,such as CNGA,TNGA,WNGA,DNGA,SNGA, ect
![brazed-pcbn-inserts.jpg brazed-pcbn-inserts.jpg](/uploads/allimg/20230601/1-2306011105432c.jpg)
Factory Image
![factory iamge.jpg factory iamge.jpg](/uploads/allimg/20230601/1-230601110615P1.jpg)
